VVWC :: View topic - dune buggy build
 Forum FAQForum FAQ   SearchSearch   UsergroupsUsergroups   ProfileProfile   Log in to check your private messagesLog in to check your private messages   Log inLog in

dune buggy build
Goto page Previous  1, 2, 3, 4, 5, 6, 7  Next

Post new topic   Reply to topic    VVWC Forum Index -> Build Forum
View previous topic :: View next topic
Author Message
65type1
VVWC Guru
VVWC Guru


Joined: Apr 16, 2004
Posts: 637
Location: Victoria, bc

PostPosted: Sat Feb 03, 2018 9:31 pm    Post subject: Reply with quote

I have been collecting some engine parts for the buggy:

aluminum case- pre clearanced
82mm crank
94 B mahles
true arc clips
Engle FK8 and coated engle lifters
straight cut gears
german 009 and a compu fire module
taylor 10mm wires
1.5 qrt sump
26mm oil pump
12.5 lbs flywheel
CE power pulley

I need to get the rotating assembly balanced and sort out the top of the engine. The original plan was for level 5 ACN heads and 44IDF's.

Now i'm thinking CB min wedges and 48IDA's or possibly turbo.... decisions Confused










_________________
VW's hate me
Back to top
View user's profile Send private message Visit poster's website
65type1
VVWC Guru
VVWC Guru


Joined: Apr 16, 2004
Posts: 637
Location: Victoria, bc

PostPosted: Mon May 28, 2018 7:51 am    Post subject: Reply with quote

Little lax on updates, new KTM 1090R has kept me busy since I picked the bike up in February... but there have been signs of life in the garage.

After returning from the machine shop for balancing, my pile of engine parts has turned into a smaller pile of parts.

I've been waiting for CB to have a sale to offset the weak CDN dollar. This weekend they had the memorial day sale so I ordered a set of fully optioned out panchitos and some CB 1.4 rockers.

Other than push rods I now have everything I need to finish the engine




Lined the pan with a foam type gasket




Got the body bolted to the pan and started fitting the nose. Struggling to decide what I want the dash layout to look like



And that's about it for updates

_________________
VW's hate me
Back to top
View user's profile Send private message Visit poster's website
mitchy965
Hardcore VW Geek
Hardcore VW Geek


Joined: Feb 05, 2013
Posts: 115
Location: comox valley

PostPosted: Mon May 28, 2018 5:09 pm    Post subject: Reply with quote

what did you decide for induction? Ida`s??
_________________
1991 964 turbo -1967 2007cc beetle-2276cc turbo drag bug
Back to top
View user's profile Send private message
65type1
VVWC Guru
VVWC Guru


Joined: Apr 16, 2004
Posts: 637
Location: Victoria, bc

PostPosted: Mon May 28, 2018 6:31 pm    Post subject: Reply with quote

mitchy965 wrote:
what did you decide for induction? Ida`s??


Decided to keep it simple and budget friendly....Ida's

_________________
VW's hate me
Back to top
View user's profile Send private message Visit poster's website
JB
Postaholic
Postaholic


Joined: Apr 02, 2007
Posts: 1199

PostPosted: Fri Jun 01, 2018 11:26 am    Post subject: Reply with quote

Ida?s! Atta boy Laughing
Back to top
View user's profile Send private message
65type1
VVWC Guru
VVWC Guru


Joined: Apr 16, 2004
Posts: 637
Location: Victoria, bc

PostPosted: Thu Jun 14, 2018 6:25 pm    Post subject: Reply with quote

Final engine pieces arrived today











_________________
VW's hate me
Back to top
View user's profile Send private message Visit poster's website
65type1
VVWC Guru
VVWC Guru


Joined: Apr 16, 2004
Posts: 637
Location: Victoria, bc

PostPosted: Sat Jun 16, 2018 6:18 pm    Post subject: Reply with quote

minor photo update






_________________
VW's hate me
Back to top
View user's profile Send private message Visit poster's website
stude
Hardcore VW Geek
Hardcore VW Geek


Joined: Jul 13, 2005
Posts: 186
Location: Saratoga

PostPosted: Sun Jun 17, 2018 7:21 am    Post subject: compression Reply with quote

What is your compression ratio?
Back to top
View user's profile Send private message
65type1
VVWC Guru
VVWC Guru


Joined: Apr 16, 2004
Posts: 637
Location: Victoria, bc

PostPosted: Sun Jun 17, 2018 7:38 am    Post subject: Re: compression Reply with quote

stude wrote:
What is your compression ratio?



static CR is set at 9.2
deck height .050
head CC 61

_________________
VW's hate me
Back to top
View user's profile Send private message Visit poster's website
mitchy965
Hardcore VW Geek
Hardcore VW Geek


Joined: Feb 05, 2013
Posts: 115
Location: comox valley

PostPosted: Sun Jun 17, 2018 8:07 am    Post subject: Re: compression Reply with quote

65type1 wrote:
stude wrote:
What is your compression ratio?



static CR is set at 9.2
deck height .050
head CC 61
perfect!!! Cool
_________________
1991 964 turbo -1967 2007cc beetle-2276cc turbo drag bug
Back to top
View user's profile Send private message
65type1
VVWC Guru
VVWC Guru


Joined: Apr 16, 2004
Posts: 637
Location: Victoria, bc

PostPosted: Mon Jun 25, 2018 7:02 pm    Post subject: Reply with quote

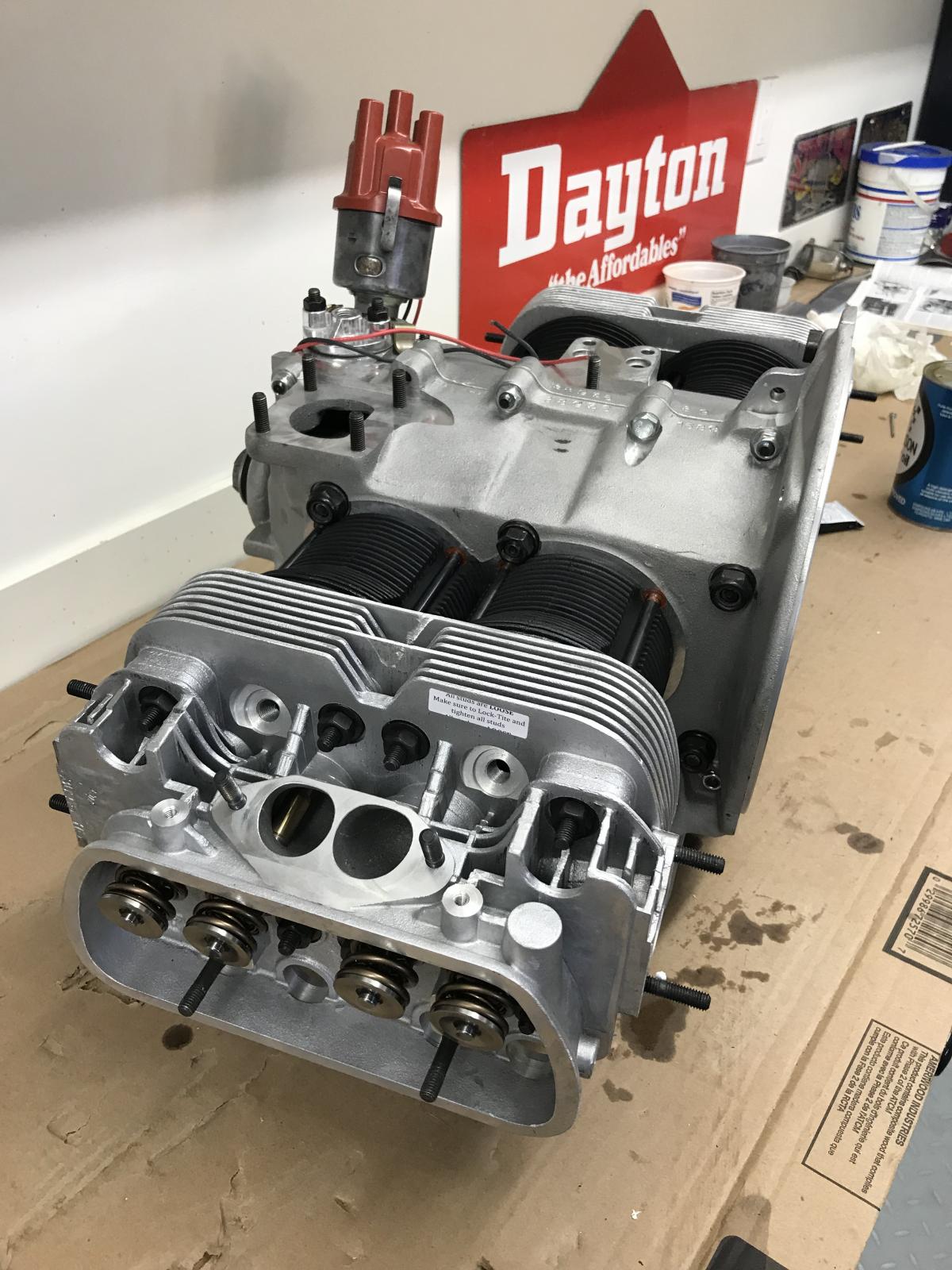

Getting some more things done on the engine







Latest item showed up... well worth the wait


_________________
VW's hate me
Back to top
View user's profile Send private message Visit poster's website
65type1
VVWC Guru
VVWC Guru


Joined: Apr 16, 2004
Posts: 637
Location: Victoria, bc

PostPosted: Mon Jul 02, 2018 12:34 pm    Post subject: Reply with quote

spent some time mocking up parts






_________________
VW's hate me
Back to top
View user's profile Send private message Visit poster's website
65type1
VVWC Guru
VVWC Guru


Joined: Apr 16, 2004
Posts: 637
Location: Victoria, bc

PostPosted: Mon Jul 23, 2018 9:26 am    Post subject: Reply with quote

Did some circle cutting yesterday







_________________
VW's hate me
Back to top
View user's profile Send private message Visit poster's website
65type1
VVWC Guru
VVWC Guru


Joined: Apr 16, 2004
Posts: 637
Location: Victoria, bc

PostPosted: Mon Aug 06, 2018 5:19 pm    Post subject: Reply with quote

More progress









_________________
VW's hate me
Back to top
View user's profile Send private message Visit poster's website
65type1
VVWC Guru
VVWC Guru


Joined: Apr 16, 2004
Posts: 637
Location: Victoria, bc

PostPosted: Mon Aug 06, 2018 9:54 pm    Post subject: Reply with quote

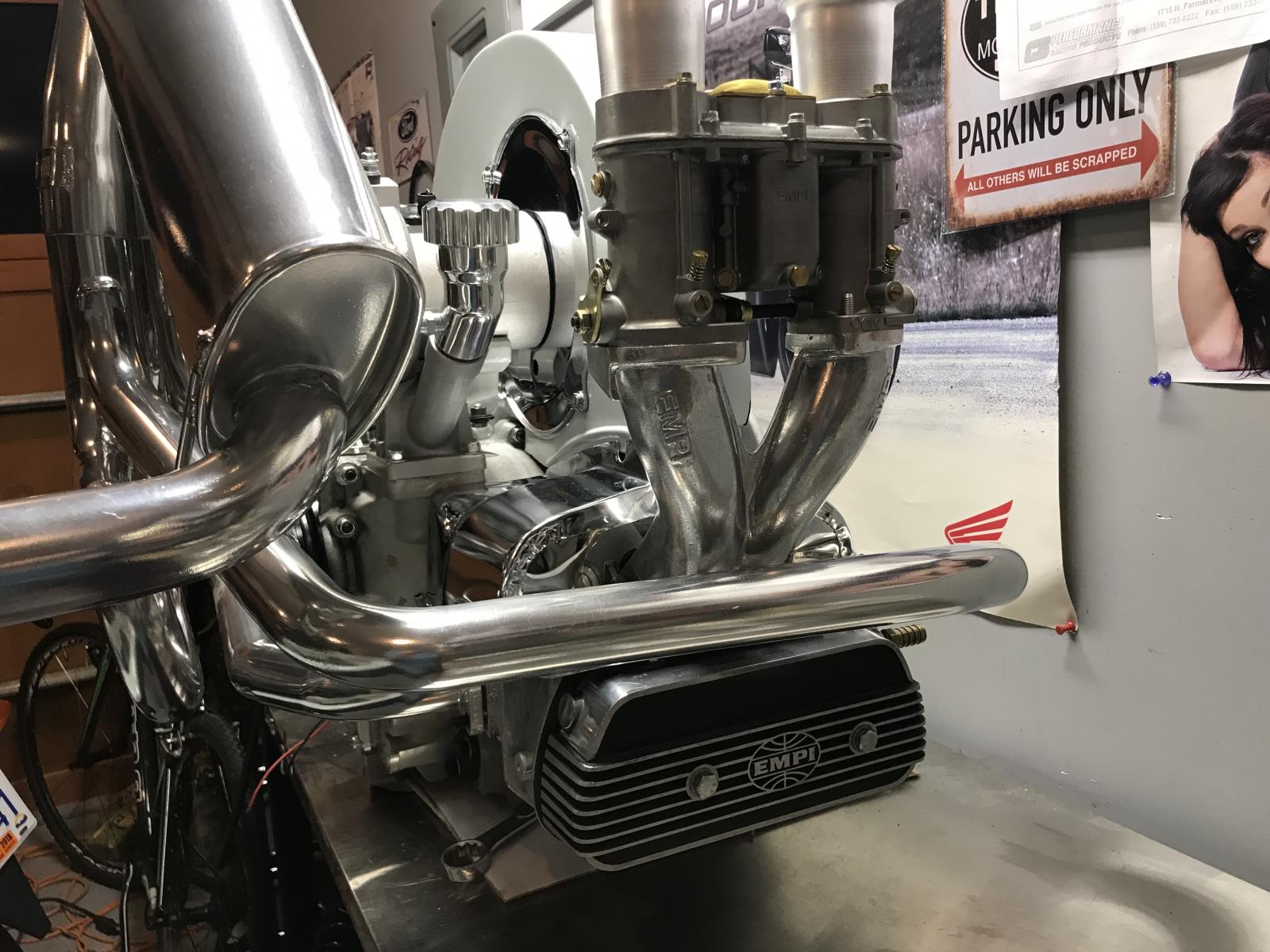

Got the coil mounted and ran a test fit of the headers.... stuff actually fit Very Happy







And after much filing and grinding... i gave up on the csp valve covers. Tried the empi's from the 60 beetle and they fit like a glove over the CB 1.4 rockers


_________________
VW's hate me
Back to top
View user's profile Send private message Visit poster's website
